5MP 4G Sim Card WIFI AI Auto Tracking 30X Zoom Wireless PTZ Speed Dome CCTV Camera

Type-ip camera
Supported Operating Systems-windows 10
Supported Operating Systems-Windows 7
Supported Operating Systems-windows xp
High Definition-5.0 Megapixels
Lens mm-4.7-94mm
Style-Dome Camera
Connectivity-IP/Network Wireless



SKU: 1005001557795148 Category:


Outdoor IP Camera 5MP 4G Sim Card /WIFI AI Auto Tracking 30X Zoom Wireless PTZ Speed Dome CCTV Camera Two Way Audio IR 80m Camhi

5MP 30X Zoom (20X Optical Zoom+10X Digital zoom) Wireless PTZ Speed Dome IP Camera WIFI Outdoor Waterproof 80M IR Night vision.

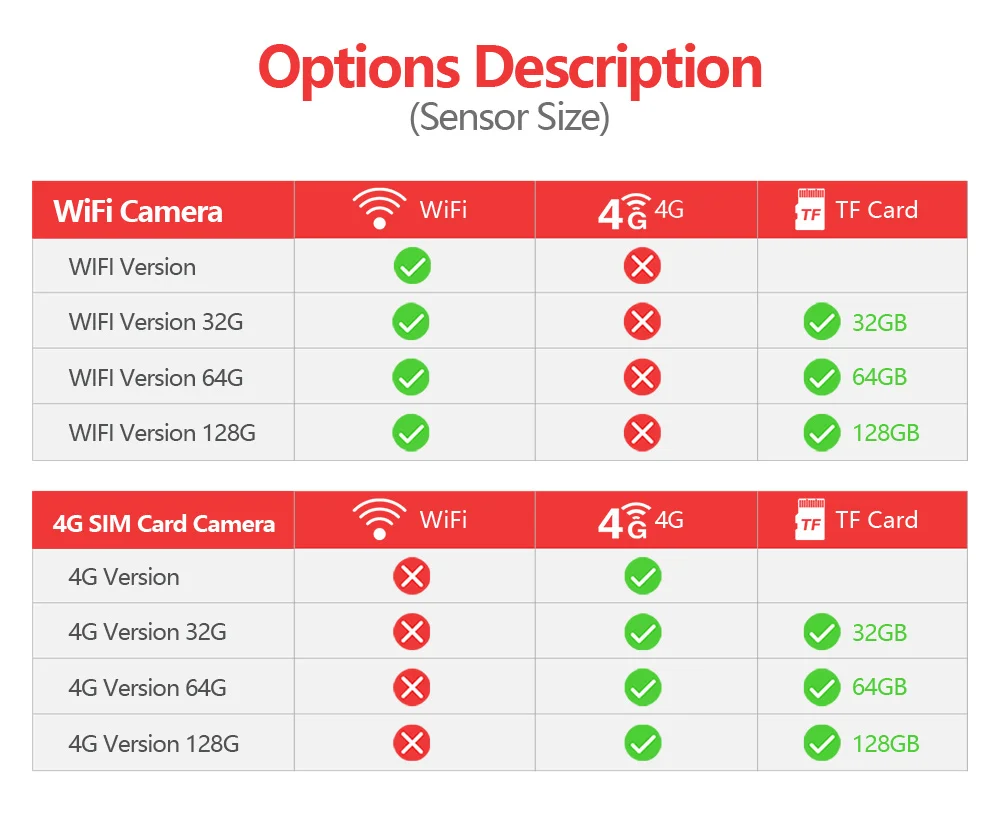

WIFI/4G Version Optional

AI Human Tracking Auto Zoom

The camera will adjust the pan/tilt rotation and zoom in automatically, capturing clear monitoring targets and auto-tracking moving human,and push alerts via email or notifications to your phone.

30X Zoom(20X optical+10X Digital)

Wall Bracket-Side
Power Consumption(W)-<=12W
Minimum Illumination(Lux)-0.05 Lux /0 Lux(IR on)
Sensor Brand-SONY
Special Features-Waterproof / Weatherproof
Alarm Action-FTP Photo
Alarm Action-Email Photo
Alarm Action-Local Alarm
Video Compression Format-H.264
Video Compression Format-H.265
Power Supply-Normal
TF Card-None
IR Distance(m)-80m
Power Supply(V)-12V 3A
Model Number-HX-W54F5MP/HX-4G54F5MP
Viewing Angle -70u00b0
Technology-Pan Tilt Zoom
Dimensions (L x W x D)(mm)-185*195*250mm
Supported Mobile Systems-ios
Supported Mobile Systems-Android
Network Interface-RJ-45 10/100Mb Ethernet Slot
Audio Output-1CH RCA
Item Name-30x Zoom PTZ IP Camera
Resolution-5MP: 2560×1920
Lens-30X(20X Optical+10X Digital zoom)
LEDs-6pcs Array LEDs. 80m IR Night Vision
Support-Support Two Way Audio (With Speaker)
Microphone Range 15m-Loudspeaker Range 60m
1 TF card slot-Up to128G(Dont included TF Card)
Support iPhone,Android APP-CamHi
Housing Material-Metal,Waterproof IP66
Network-WIFI/4G Optional

Anytime, Anywhere To See Where You Want To See

Mobile App Support

Provide Android & IOS APP (CamHi) And Professional CMS PC Client Software

Two Way Audio

Built-In Microphone, Support Two Way Audio Talk Back (With Speaker)

Pan Tilt Rotation

Horizon: 0 To 360 Degree ; Vertical: 0 To 93 Degree

80m IR Night Vision

6Pcs Array Infrared LEDs. 80m IR Night Vision


TF Card is optional choose

Motion Detection & Alarm Linkage

Alarm Send Pictures To The Specified Mailbox, Alarm Upload Pictures And Videos To The FTP Server, Alarm Write Pictures And Videos To Micro SD Card, Alarm Message Push

Support Cruise Zoom

Support 8 Preset Points, Zoom Lens Status Can Be Saved During The Preset

Waterproof IP66

Metal Housing Material, Outdoor Use, Waterproof IP66

Product Size

Packing list

Features :

Support AI Human Feature Tracking&Automatically Zoom

30X Zoom Auto Focus Lens(4.7-94mm 20X Optical+10X Digital)

Support Wifi/4G (Depends on the models you choose,See Detail on Specification )

Support HD 5MP High quality resolution

6pcs Array Infrared LEDs. 80m IR Night Vision

Built-in Microphone&Speaker,Support Two Way Audio Talk Back

Microphone Effective Range 15 Meters

Loudspeaker Effective Range 60 Meters

Support TF/Micro SD card, up to 128G(Dont included TF Card)

Pan tilt rotation, horizontal:355° & vertical:90°Ø

Support P2P, view & anywhere & anytime

Elegant outline and easy installation

Provide android & ios APP (CamHi) and professional CMS PC client software

Support 8 preset points ,  zoom lens status can be saved during the preset

Support Cruise Zoom /Auto Tracking AI Human Detection

Metal Housing Material,Outdoor Use,Waterproof IP66



Products Model HX-W54F5MP HX-4G54F5MP
Operating system Embedded Linux OS
Effective pixels 5MP(2560×1920)
CMOS Sensor 1/2.8″
Lens interface type M12
Lens 30X Zoom Auto Focus Lens(4.7-94mm 20X Optical+10X Digital)
View angle 68.5°-4.2°
Min.illumination 0.05 Lux  / 0 Lux(IR on)
Day&Night mode Auto IR-CUT
Night vision distance 6pcs Array Infrared LEDs. 80m IR Night Vision
Video compression Standard H.264 Main Profile/H.264 Baseline
Video streaming Dual streaming
Video resolution First stream:2560×1920 or 2560×1440
Second stream:800×600 or 800×480
JPEG stream :(Monitoring for mobile phones), Q720P(640×352), QQ720P(320×176)
Video code rate 32 to 8192Kbps. supports constant bitrate/variable bitrate
Video frame rate 15fps(PAL 50HZ/NTSC 60HZ)
Audio Audio compression standard: G.726/G.711
Audio code rate: Rate adaptive
Audio Input: Support, built-in Microphone
Audio Output: Support Two Way Audio Talk Back(With Speaker)
Image settings Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror
Image enhancement Backlight compensation,Automatic white balance,Digital WDR, 3D digital noise reduction
Audio function Built in Audio Microphone, Support Two Way Audio Talk Back(With Speaker)
Motion detecting Can set 4 independent detection region (1-100 sensitivity can be set)
Alarm linkage Alarm send pictures to the specified mailbox,
alarm upload pictures and videos to the FTP server,
alarm write pictures and videos to Micro TF card, alarm message push
Privacy mask Maximum support 4 users to simultaneously browse
OSD Support camera name, date and time information superimposed
User management Supports user and rights management
Simultaneous viewers maximum support 12 users to simultaneously browse (each stream supports 4 users)
Connection protocol Support ONVIF 2.1(backward compatible)
Network Support

2.4 GHz  to  2.4835 GHz/IEEE802.11b.

802.11g. 802.11n Draft

GSM 900/1800 MHz


E-UTRA FDD Band 1/3/7/8/20/28

E-UTRA TDD Band 38/40/41

Wireless Security 64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS
Transmission rate 11b: 11Mbps,11g :54Mbps,11n :135Mbps
Rotation angle Horizon:0° to 355°. Vertical: 0° to 90°
Horizontal speed 1° to 40°/S
Vertical speed 1° to 20°/S
Preset Support 8 preset points ,  zoom lens status can be saved during the preset
Cruise Zoom Support Cruise Zoom/Auto Tracking Zoom In
Power interface 1 5.5mm power interface
Ethernet 1 RJ45 & Antenna 10M/100M Adaptive Ethernet Interface
TF card Slot 1 TF card slot. up to128GB (Dont included TF Card)
Reset button Support(On the side of  the TF Card Slot)
Power supply DC 12V 3A
power Day: 3W;  Night: 12W
Operating temperature -20 to +60 degree
Operating humidity 10% to 95%
Material Metal Housing ,Outdoor Use,Waterproof IP66
Installation Rack mounting
Size(mm) 239*137*215
Weight(kg) 1.45kg
Package Size(mm) 295*285*160
Package Weight(kg) 2.15kg



Packing List:

1*Dome Speed IP Camera Built-in Microphone&Speaker (TF Card Optional Choose)

1*DC 12V 3A Power Supply

1*CD & Manual

1*Screws Bag
