Description

Pegatah 4K cctv tester cctv monitor for Ip camera tester Touch monitor IPC tester poe testers CCTV camera tester CFTV cameras

IP tester Support Languages

TVI camera tester-8MP
CVI camera tester-8MP
AHD camera tester-8MP
PoE power output-DC12V 3A, DC48V
Rapid ONVIF-auto view video and create
Plug type-EU/US/UK
Type-Security camera tester
Technology-tester cctv
Type 2-cctv tester 5mp
PPPOE dial test-Support
PTZ Control-Support
SDI Camera-8MP
HDMI-4K Max
VGA-2048 x 1152 60FPS Max
Tester type-Security tester
cctv tester-yes
hdmi tester-support
tester monitor-yes
IP CAMERA MONITOR TESTER-yes
Touch monitor-Support
ipc tester-yes
ahd monitor-Support
hdmi monitor-yes

English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech

TI-HT9650 series

● 5 inch IPS touch screen, 1920×1080 resolution

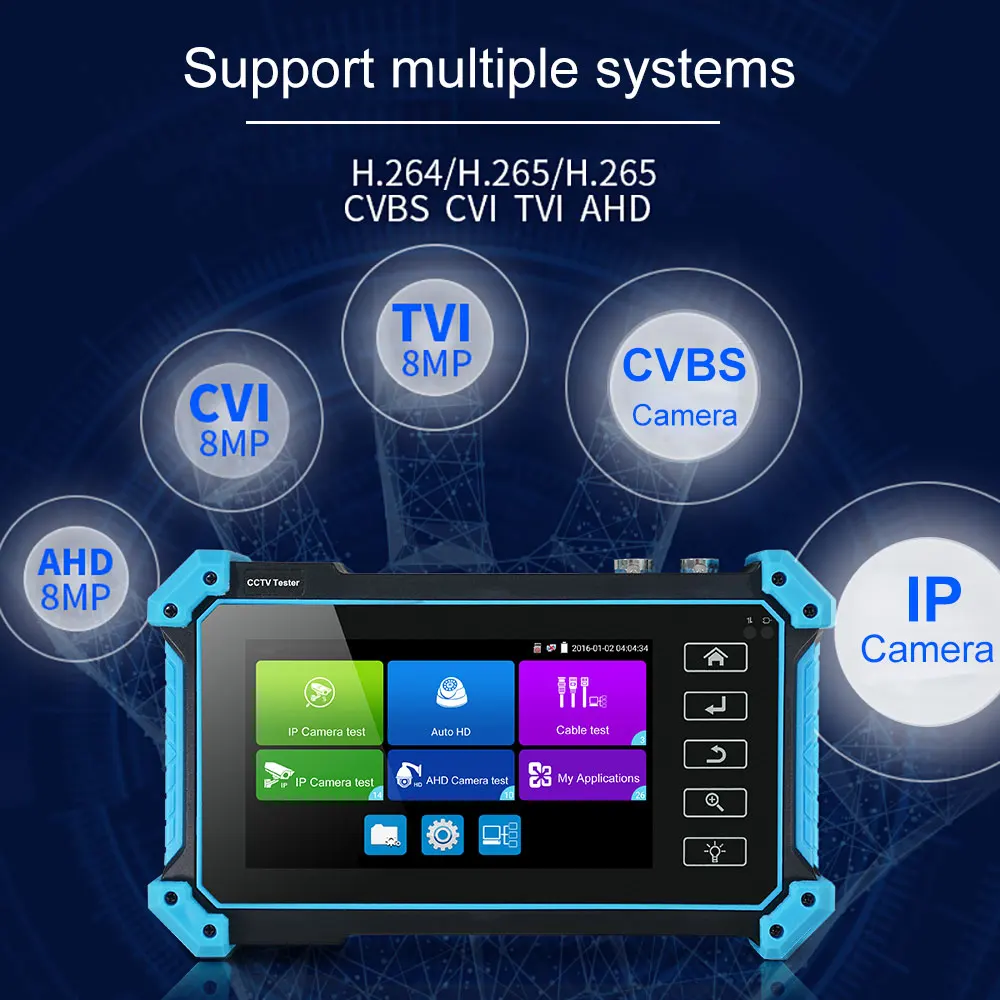

● 8MP CVI/ TVI/ AHD camera test

● 8MP EX-SDI, HD-SDI, 3G-SDI camera test

● H.265/H.264, 4K video display via mainstream

● VGA input, support 1920 x 1200 60FPS

● HDMI input, support 4K 30FPS

● DC12V 3A, 48V PoE power output

● Auto HD, auto recognize HD coax camera type and resolution

● RJ45 TDR cable test, cable opens ,shorts and length test ,Max180m.

● UTP cable test, detect the near-end, mid-end and far-end fault point of the RJ45 cable plug

TI-HT9652C

5inch 1080P touch screen 8MP CVI/ TVI/ AHD/SDI camera test With HDMI+VGA input+DC12V 3A/POE Output+RJ45 TDR cable test Cable test+ Cable Tracer

TI-HT9651C

5inch 1080P touch screen 8MP CVI/ TVI/ AHD camera test With HDMI+VGA input+DC12V 3A/POE Output+RJ45 TDR cable test Cable test+ Cable Tracer

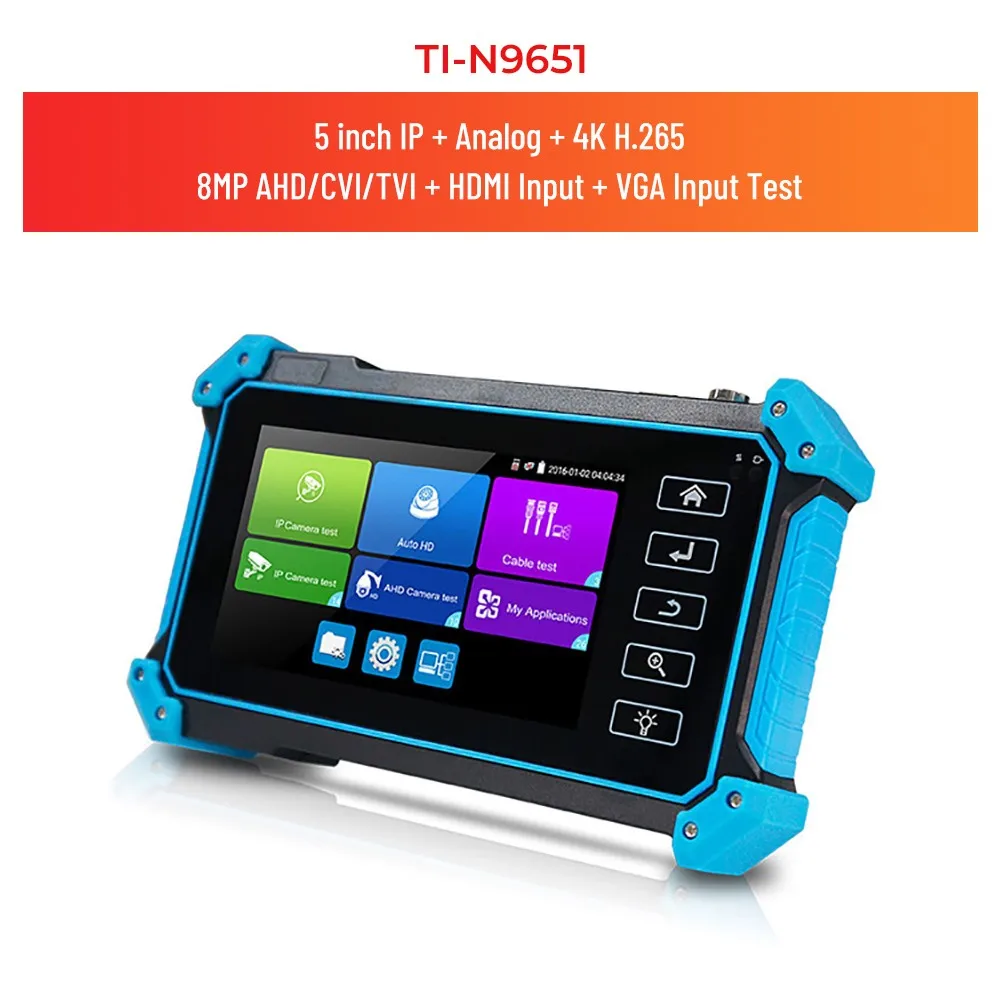

TI-HT9651

5inch 1080P touch screen 8MP CVI/ TVI/ AHD camera test With HDMI+VGA input+DC12V 3A/POE Output+RJ45 TDR cable test Cable test

TI-N9618-CADHW

4inch touch screen H.265/H.264 IP+Analog+8MP AHD+8MP CVI+8MP TVI+POE output+DC12/3AOutput;
Added network line test function (an additional network port)+ Cable tracer

TI-N9618-ADHW

4-inch touch screen H.265/H.264 IP+Analog+8MP AHD+8MP CVI+8MP TVI+POE output+DC12/3A output; new network cable test function (one more network port), one more network cable test for accessories box

Application

The 5 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1920*1080 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control, and cable test functions. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.

TI-HT9651(C)TI-HT9652C Overview

Feature

1.4 inch IPS touch screen,800*480 resolution
2.New- H.264 and H .265 ,4K video display via mainstream
3.New- 8MP TVI test,3840 x 2160P 15 FPS,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu
4.8MP AHD test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
5.8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
6.PPPOE Dial test, can connect internet to PPPOE dial test
7.HD coaxial video signal quality test
8.IP & CVBS camera test, PTZ controller
9.New-IP discovery , just by one key to detect all network cameras IP address
10.Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report
11.New- IP and analog testing at the same time , converter test from analog to digital with dual test window IP & CVBS
12.Hik test tool ,pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters
13.Dahua test tool, test Dahua camera modify the user name, password and IP parameters
14.New- Traffic monitoring of the tester “LAN port”, display network port or WIFI connection real-time upload and download speeds and other network parameters
15.New- Drop-down menu , can select PoE power ,IP setting, CVBS, LAN info etc in any interface
16.New- Customers self update software ,you can install apps with android version ,such as Skype, wechat etc
17.ONVIF camera test, support 4K/h.265/h.264, Network PTZ controller (ONVIF)
18.PoE DC48V power output, Max power 24W,DC 12V /3A power output
19.New- Quick office, quick office app ( support excel ,word ,ppt format ) doc. editable
20.PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG
21.PING test ,IP address scan, port flashing etc
22.Audio in , support record and save the audio/LED lamp, calculators, music players and other application tools
23.7.4 V /2400mAh Lithium Ion Polymer Battery, after 4~5 hours charging , working time lasts 7 hours

Package details

9650 series &9618
